How to Install Remote Desktop (xrdp) on Ubuntu

In this guide, we will explain how to install Remote Desktop Protocol using xrdp on an Ubuntu instance, enabling seamless remote access to your system for enhanced productivity.

Install xRDP on Ubuntu​

XRDP: Remote Desktop Protocol Server for Unix-like Systems​

xRDP is an open-source server application that allows you to utilize Microsoft's Remote Desktop Protocol (RDP) on operating systems aside from Windows, including Linux and BSD variants. This enables seamless remote desktop access between Windows clients and non-Windows servers, offering a cohesive environment for mixed-OS networks.

xRDP allows users to connect to a Linux machine from another computer using a compatible RDP client.

Steps to Install xRDP on Ubuntu​

1. Update Ubuntu Server​

First, update and upgrade the system:

sudo apt-get update -y && sudo apt-get upgrade -y

2. Install Graphical Interface and xRDP​

  1. Install the graphical interface:
   sudo apt-get install xubuntu-desktop -y
  1. Install xRDP:
   sudo apt-get install xrdp -y

3. Check Status, Start, and Enable xRDP​

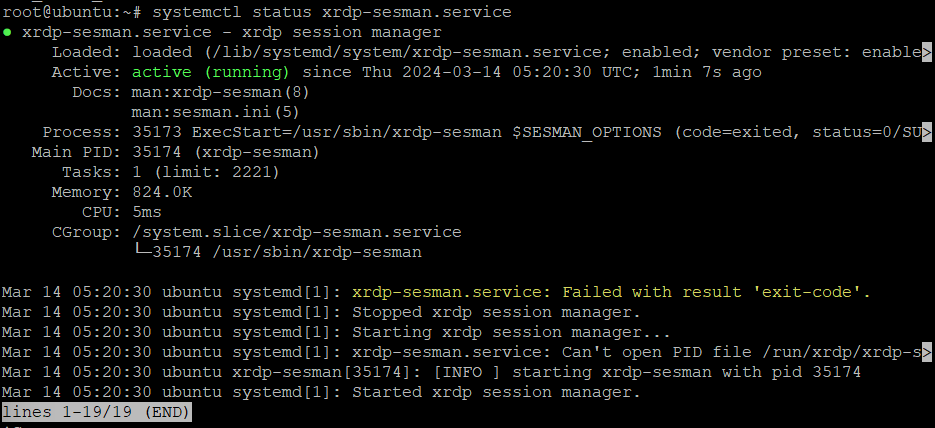

  1. Check the status of the xRDP service:
   systemctl status xrdp

  1. Start and enable the xRDP service:
   sudo systemctl start xrdp
sudo systemctl enable xrdp

4. Add xRDP User to SSL-Cert Group​

Add the xRDP user to the ssl-cert group:

sudo usermod -a -G ssl-cert xrdp

Restart the xRDP service:

sudo systemctl restart xrdp

5. Configure Firewall​

Allow RDP traffic through the firewall:

sudo ufw allow 3389/tcp

Check the UFW status, enable it, and reload the rules:

sudo ufw status
sudo ufw enable
sudo ufw reload

Connect to Remote Desktop​

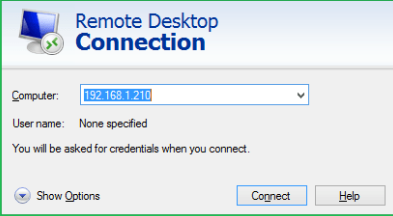

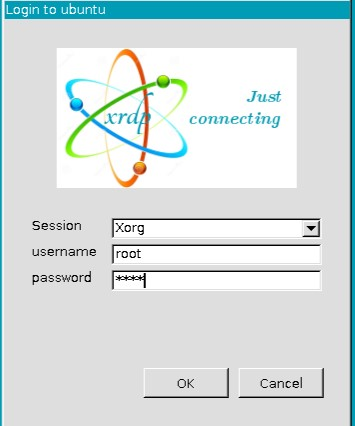

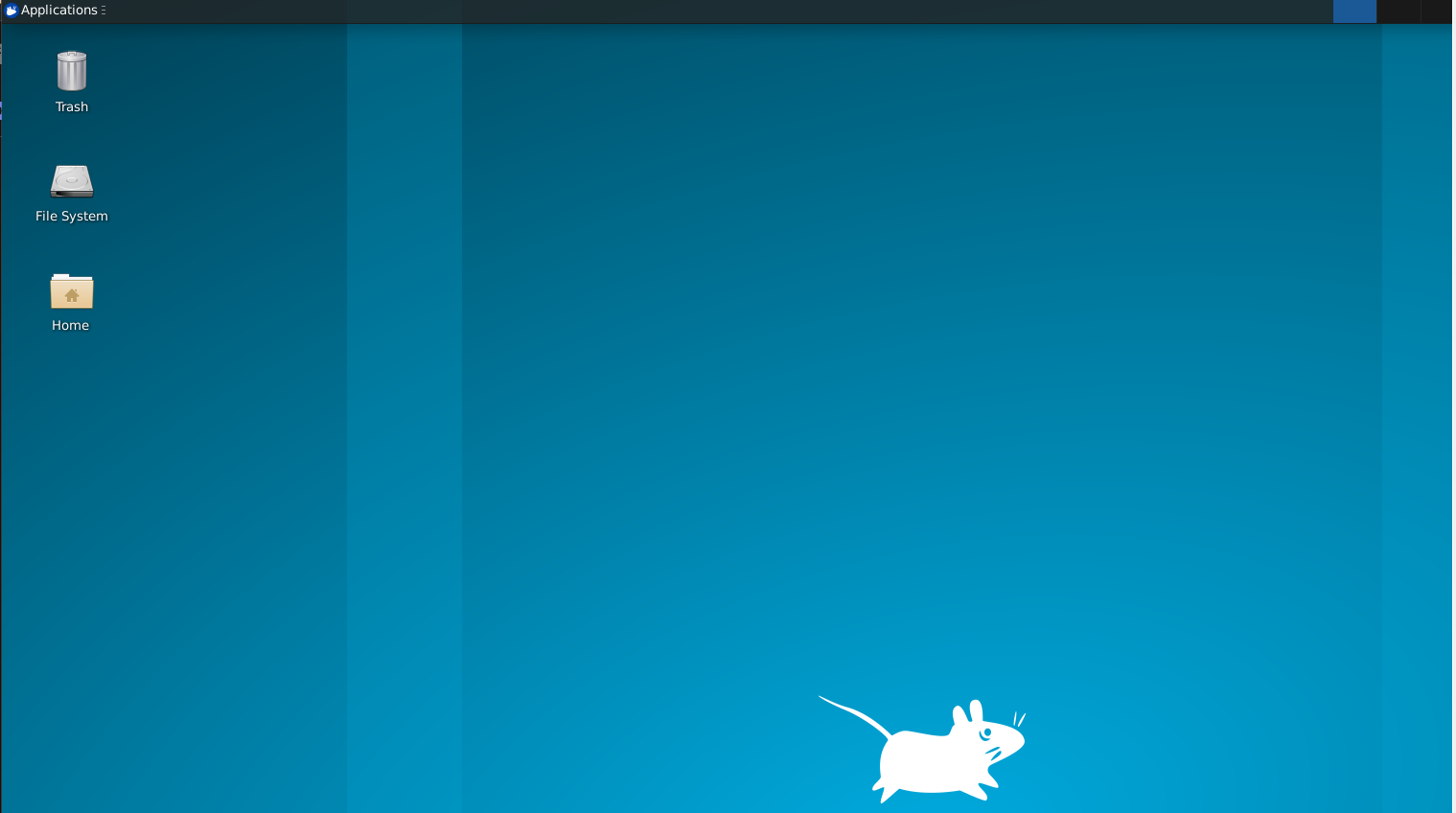

Use an RDP client to connect to your Ubuntu server. Enter your Ubuntu server's IP address, username, and password.

Troubleshooting​

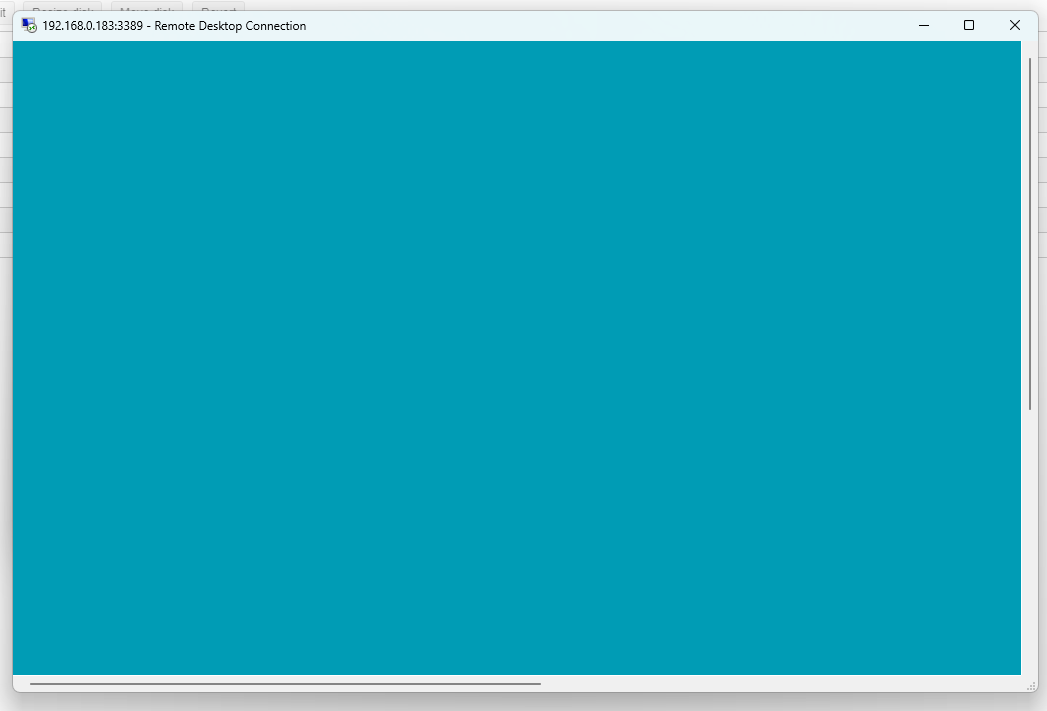

If you encounter issues after entering your username and password, follow these steps:

  1. Stop the xRDP service:
   sudo service xrdp stop

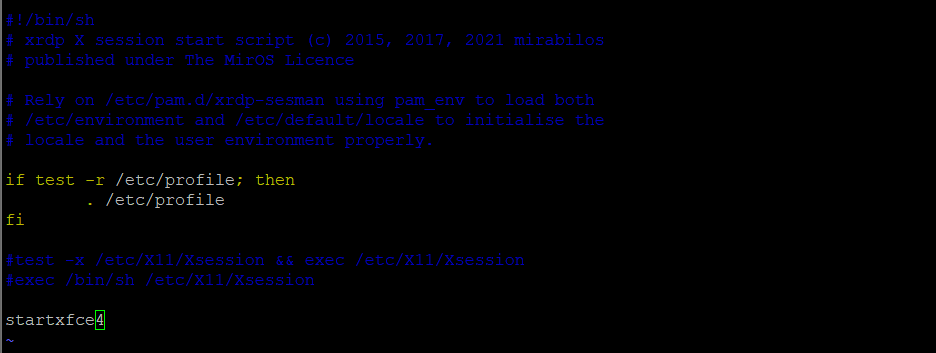

  1. Edit the startwm.sh file:
   sudo vi /etc/xrdp/startwm.sh

Comment out the following line by adding a # at the beginning:

# test -x /etc/X11/Xsession && exec /etc/X11/Xsession
exec /bin/sh /etc/X11/Xsession

Add this line instead:

startxfce4

  1. Start the xRDP service again:
   sudo service xrdp start
